Full extension telescoping rails feature smooth sliding

★ By Miles Budimir Leave a Comment

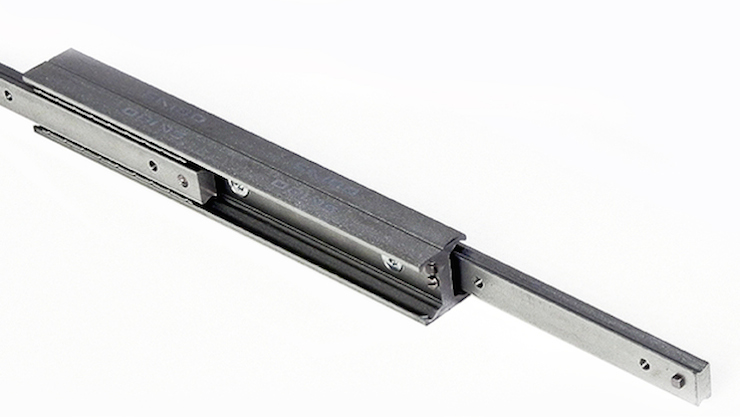

LM76 has added a new series of 100% extension rails to their extensive product line of linear motion components and complete linear motion systems. The exclusive distributor of SAIBO Linear Motion Systems in the US, LM76, is now offering the SAIBO TDB28 and TDB43 series of Telescoping Extension Rails. Stroke lengths (extension) are 100% of the length of the assembly. The TDB28 series of Telescoping Extension Rails consists of 14 rails with stroke lengths from 148 mm (5.827 in.) to 1,202 mm (47.323 in.) and supporting loads from 472 N (106 lb) to 1,018 N (229 lb) when two rails are mounted in parallel and the load is uniformly distributed between the rails. The TDB43 series of Telescoping Extension Rails consists of 23 rails with stroke lengths from 246 mm (9.685 in.) to 2,026 mm (79.764 in.) and supporting loads from 1,212 N (272 lb) to 2,414 N (543 lb) when two rails are mounted in parallel and the load is uniformly distributed between the rails.

rail

The TDB28 and TDP43 Telescoping Extension Rails are created using a “C” shaped external rail and an internal slider. Two rows of steel ball bearings (one on the top and bottom of the slider) travel in ball cages on hardened “V” shaped ways with four points of contact. Assembled with a zero clearance, these compact, precision, smooth sliding rails are designed for applications such as: Delicate parts transfer, assembly, testing, laser machining and drilling wafer handling, rail and rack systems for components in autonomous vehicles, aircraft, trains, ships, and trucks.

These industry standard 100% Full Extension Rails are suitable for use in new and existing applications. Both the TDB28 and TDB43 100% Full Extension Rails have a maximum working speed of 0.8 m/sec and have an operating temperature range of -20 °C (-4 °F) to 120 °C (248 °F). For complete information on the assembly, loads, and stroke lengths for each in these series and additional details consult the factory.

For more information, visit www.lm76.com.
