New multi-axis positioning family from PI

December 9, 2016 By Danielle Collins Leave a Comment

High-end industrial and research applications rely on precision motion stages and systems to execute mission-critical procedures and processes. PI, a leading provider of nanopositioning and motion control solutions, has developed its new family of linear, rotary, and Z-axis stages to meet those demanding requirements. Meet the L-310 vertical stage, the L-611 rotary stage, and the L-511 linear translation stage.

multi-axis

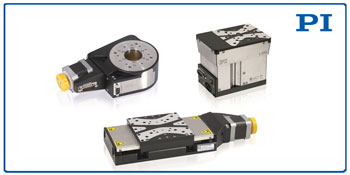

Rotary (L-611), Linear (L-511) and Vertical (L-310) Stages

High Resolution, Multi-Axis Combinations, Rotary, Linear, and Vertical Motion

The new motorized positioning stage family is available with high-resolution encoders and a choice of stepper and servo motors. Lower cost open loop models are also offered, as well as vacuum versions. The use of high performance components makes these stages ideal for industry and research, especially in high duty cycle applications.


Read the Tech Article: Performance, Resolution, and Velocity Control of Stepper Motor-driven Precision Positioners


Linear Stage
Starting with the L-511 linear stage, available with travel up to 155 mm, vertical and rotary stages can be added to create 360° / XY / XYZ motion systems. The L-511 is offered with different drive systems, providing smallest motion increments from 0.6 µm down to 20 nm.

Vertical Stage
For vertical motion, the new L-310 Z-stage delivers 26 mm (1 inch) travel, minimum incremental motion to 0.1 µm and velocity to 15 mm/sec. An optional linear encoder provides 50 nm resolution. The self-locking design with 10 kg load and a stress-relieved aluminum base guarantees excellent in-position stability. Long service life and excellent guiding accuracy with minimal backlash are guaranteed by the preloaded ball screw drive and precision crossed roller bearings.

Rotary Stage
The L-611 rotary stage provides a 35 mm aperture and 360° motion and features pivot bearings for high accuracy. Resolutions up to 0.0001° can be achieved with the closed-loop version. A hardened and ground worm screw combined with a calibrated worm gear ensure smooth and accurate motion.

Controllers
Servo and stepper motor controllers in single and multi-axis configurations are available to drive the new positioning stages. All PI controllers are supported with an extensive software package for fast start-up and easy integration into custom applications.

Get specifications, a data sheet, and more information
