Positioning stages and gantries — new trends in integration approaches

May 4, 2017 By Lisa Eitel 2 Comments

There’s demand for motion designs offering simplicity or turnkey operation, so component suppliers are now doing much more integration for OEMs and plant engineers. Nowhere is this more evident than in the way today’s positioning stages, rotary tables, and gantry setups are built.

“As part of this trend, we’re seeing more demand for our IntelLiGent actuators — in which the linear, rotary, XY, or vertical-lift stage integrates motor, drive, and controller,” said Greg Kane, manager at IntelLiDrives.

These quickly connect electrically and mechanically — and easily network to each other and supervisory control systems such as PCs. Of course, increased need for networked controllers and drives has come with ever-faster communication protocols such as EtherCAT.

“That’s one reason PI acquired ACS Motion Control — for their knowledge in this area,” Stefan Vorndran of Physik Instrumente (PI). “We also see more demand for complex systems, which is why we offer precision motion and automation in the form of everything from simple gantries to complete purpose-designed multi-axis motion systems,” added Vorndran of PI.

Other manufacturers leverage the power of automation controllers designed to control axes of motion as well as the rest of the machine. These accept all I/O for seamless control of whole operations — which relieves OEMs and plant engineers of the burden of integration. “We’ve successfully capitalized on this trend to complete system-level solutions,” said Jeremy Miller, product manager of linear mechanics at the Parker Hannifin Electromechanical and Drives Division. Parker’s electromechanical products come as motion-control components, but the supplier also offers integration services to combine all these components into complete turnkey solutions if needed.

“This means combining multiple axes of actuators, motors, drives, and the motion and machine controllers that make them all function — and finishing the machines out with framing and guarding,” added Miller.

About 60% of the business Parker Hannifin’s Electromechanical and Drives Division does is custom systems, and that’s largely to reduce design complexity for customers. “A design team might call us with a completely unique application that our standard products can’t solve. Here we’ll leverage the power of our engineering resources to build ground-up solutions and then integrate its motion components — sometimes even building the panel and integrating controls,” said Miller.

Here’s one such example — a Cartesian setup with enough accuracy to allow imaging of progenitor cells in life-science studies and production for treatment:


“In the current automation environment, we also see an increase in simplified, turnkey-operation indexing devices,” said Marc Halliburton, engineering manager at Motion Index Drives.

Special case of indexing tables — large and small

With indexers, there’s continued migration towards thin geometries, direct-drive setups, and fully integrated designs. “The request we’re getting more often now — particularly in the miniature rotary-tables segment — is for high-speed rotary tables that directly compete with servo motors on speed … while providing all the advantages and features of rotary tables,” said Kane.

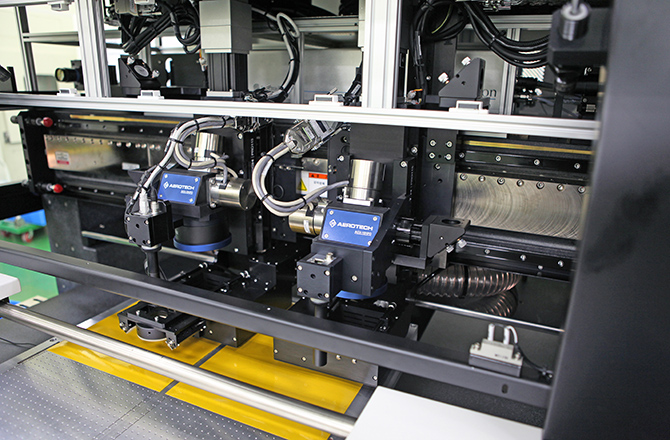

One Aerotech controller has an Infinite-Field-of-View (IFoV) feature that lets users combine a galvanometer system with servo stages to get large field-of-view processing for all sorts of laser applications needing high accuracy and throughput.

To this end, direct-drive rotary technologies first came to the market to improve upon the speed and precision of geared rotary solutions. Consider how some mechanical-transmission mechanisms are limited to 50 rpm and precision of 1 to 2 arc-min. Direct-drive rotary technologies have expanded potential applications with speeds to 200 to 300 rpm and precision of 20 to 30 arc-sec. “Now customers are demanding even higher speeds — above 500 rpm with precision of 5 arc-sec precision for semiconductor and optics applications,” added Kane of IntelLiDrives.

Design engineers are also looking for compact form factors and lightweight rotary solutions to integrate rotaries into host manufacturing equipment … particularly with precision XY positioning stages. Direct-drive rotary servo stages can fit the bill here as well. “Some large-diameter models of our stages are only 22 mm height but run at 500 rpm — and smaller models run at 1,000 rpm to 3,000 rpm, in the case of our ACR-32UT,” explained Kane. Specialty motoring modules are built into the stage in a planar-like fashion. A zero-cogging and zero-hysteresis magnetic motor imparts speed constancy even from sub-rpm to a few thousand rpm.

But smaller indexing drives aren’t the only ones that are increasingly integrated. Even tables many meters in diameter running at a couple hundred rpm are now bought (in many cases) fully engineered or setup for flexible operation. “OEMs and plant engineers are more frequently asking for complete solutions that can simply be powered and run. We also see machine builders and end users seeking more general solutions that can easily adapt to future applications,” said Halliburton.

For these requests, the manufacturer offers myriad solutions — including fixed RT series index drives with IP20 and IP65 ratings to run indexing devices as standalone machines. More after the jump.

Multi-axis air-bearing positioning systems boost precision in coordinate-measuring machines. Image courtesy Physik Instrumente (PI)

“For our TMF series fully programmable units, we also offer variations tailored to different budgets — from an IP20 closed-loop variable frequency drive (VFD) to a complete NEMA 1 enclosure with drive,” said Halliburton. The supplier also offers ac motors with encoders, servo motors, and drives to complement the indexing device.

Bringing total integration to OEMs and end users of stages, gantries, and tables

Rotary, linear, and lift and Z-axis positioning stages have all seen more upfront customization over the last few years. “This trend is not unexpected, as it mimics the general move towards higher levels of expertise and abstraction seen in many industries,” noted Will Land, business development manager, Aerotech. It’s a common refrain: “Our customers leverage our motion control and precision-engineering expertise to free internal resources for higher-value process tasks. This lets them bring their process and product to bear faster and more efficiently,” added Land.

The manufacturer recently changed how it cultivates and focuses internal knowledge — creating distinct areas of technical excellence for project and application-engineering staff to pursue. “We’ve also expanded the scope of operations for our global technical-support staff to provide advanced services to customers through project startup and implementation phases,” added Land of Aerotech.

In a different move, Motion Index Drives has added capacity to provide more in-house services on both the mechanical and controls ends. “The large integration sources have wanted more components to be completed when they arrive,” said Halliburton. “So, we’ve added design and engineering of value-added and customized solutions, such as baseplates, riser weldments, frames, slip rings, and tool-tray transfer systems. We’ve also added complete control-panel delivery with our indexing devices.” Panels are powered, tested, and tuned with the indexing drive prior to shipment, which eliminates a lot of debugging and startup time at the integration source.

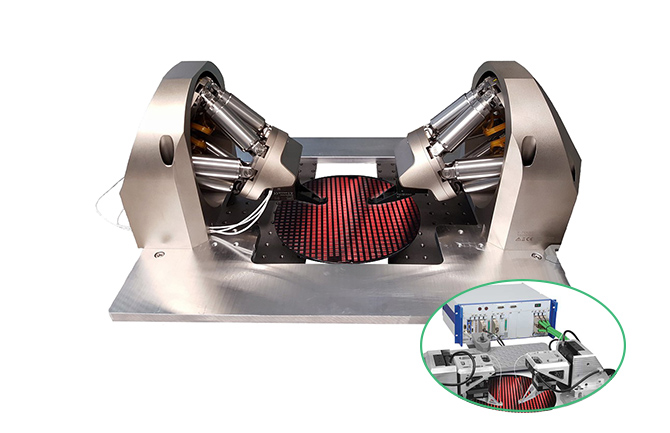

This is PI’s Fast Multichannel Photonics Alignment (FMPA) setup to help with silicon-photonics testing. Such wafers need nanoscale alignments not possible off visual or mechanical references. Optimization must be through multiple optical inputs and outputs run simultaneously. The PI setup includes high-throughput piezo nanopositioners and a motion control running specialty algorithms.

Acquisitions in the motion-component supplier space have let some bring integration of specialty subsystems under one roof … Read more on Page 2 of 2  …
