Primatics linear stage for long travel and high precision

March 15, 2016 By Danielle Collins Leave a Comment

Primatics PXL43B long travel linear stage is a small form factor, high precision motion stage.
A linear motor and linear encoder provide precise positioning to 150 mm. Anti-creep cage cross roller linear bearings result in smooth, flat, and straight motion. PXL43B

The PXL43 series is ideal for use in applications for precision assembly and inspection. Its compact size is ideal for space constrained applications. The ironless linear motor and high-resolution encoder yields extremely smooth motion for scanning applications. Process corrections are no problem due to the PXL43’s incredible ability to make nanometer level steps.

Standard features include a precision linear encoder with index at the center of travel. Multiple resolutions and clock frequencies are available along with a 1 Vpp analog version. Forward and reverse limit sensors are also standard. Two PXL43’s can be directly stacked for XY configurations with a total height of 86 mm. The smaller PXL33 can also be stacked on a PXL43.

For use in vertical applications, an optional pneumatic counterbalance is available. The counterbalance is adjusted for the payload after installation. Improved accuracy can be achieved with the mapping option. Data is provided from laser interferometer measurements to generate position correction information along the entire travel of the stage.

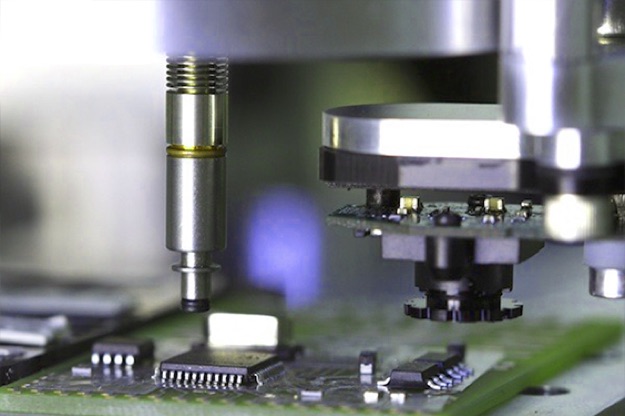

micropickandplaceFeatures:

  • < 2 nm incremental motion possible
  • Resolutions to 10 nm and 1 Vpp available
  • Small footprint, low profile
  • Travel to 150 mm
  • Linear motor
  • Linear encoder
  • Limit sensors
  • Directly stackable in XY configurations
  • 100% tested for specification compliance

Primatics
www.primatics.com

Filed Under: Industry news, Stages + gantries Tagged With: cross roller slide, cross roller table, crossed roller slide, crossed roller table, Linear Motor, linear stage, primatics
