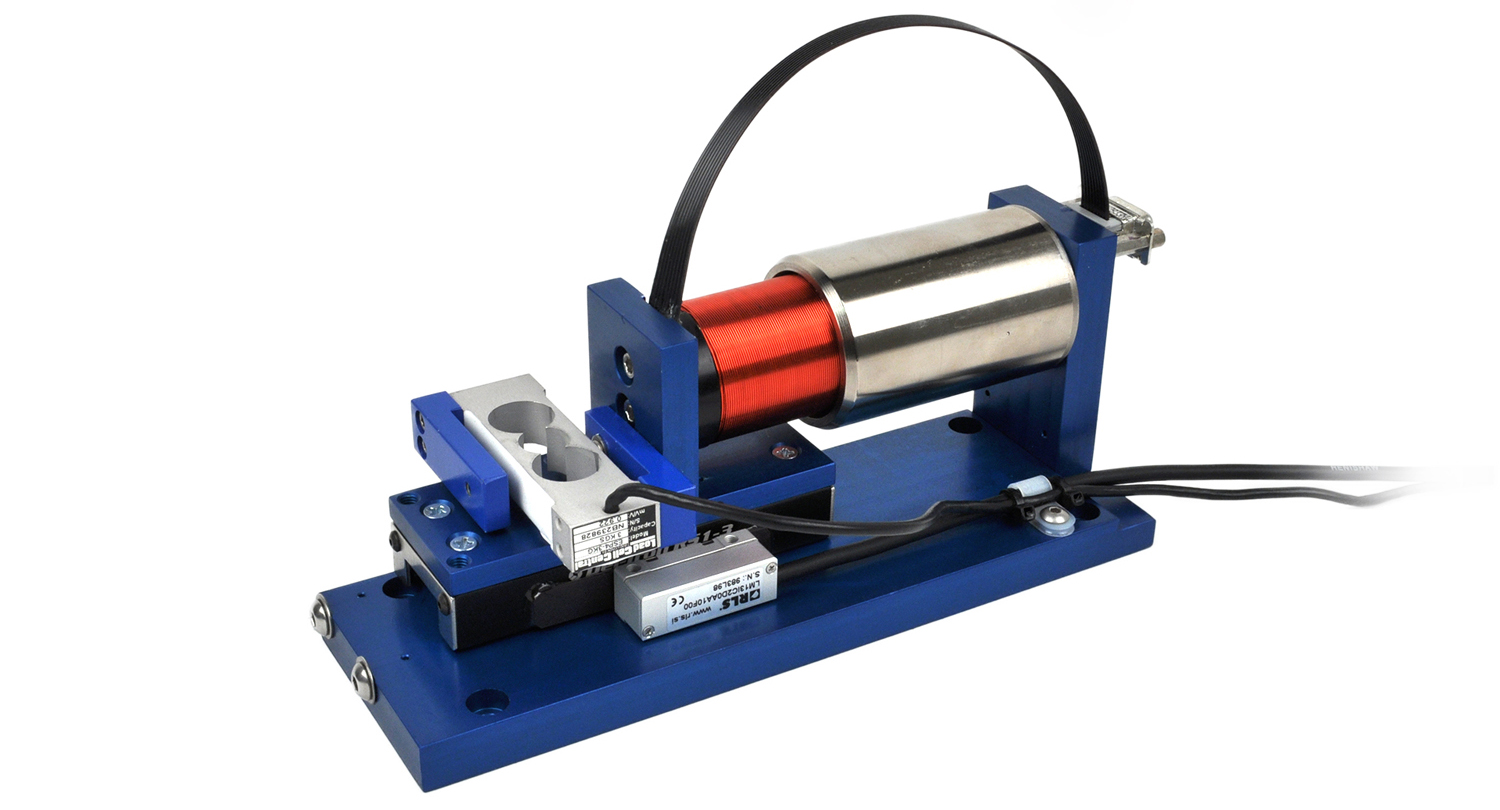

The VCS20-020-CR-01-MC-F3K voice coil positioning stage has dual feedback capability. It can operate either under closed loop position control with force monitoring or closed loop force control with position monitoring. It uses H2W voice coil motor NCC20-18-020-1A to generate a continuous and peak force of 2.0 lb and 6.0 lb respectively — with total stroke length of 2.0 in.
The 1-micron resolution encoder allows for precise positioning. The 3kg rated force transducer allows for 0.01-3kg of push/pull force feedback control. The voice-coil positioning stage comes supplied with a high accuracy crossed roller bearing. The motor coil is the moving part of the assembly to reduce the moving mass of the system. Power is supplied to the motor via a high flex, high reliability flat ribbon cable.
Voice-coil positioning stage features
- Can close the control loop via position (utilizing the 1-micron resolution encoder) or force (utilizing the 3-kg rated force transducer), and the ability to switch between the two within the motion controller.
- High resolution and repeatability
- Low moving mass; high reliability
- Ability to run in horizontal or vertical orientation
For more information, visit the h2tech.com product page for the voice-coil-based stage.
H2W Technologies, Inc. is dedicated to the design and manufacture of linear and rotary motion products that are used in the motion control industry. The complete line of linear electric motors includes: Single and dual axis linear steppers, DC brush and brushless linear motors, voice coil actuators, and AC induction motors. Also offered is a complete line of ball screw, lead screw and belt driven positioning stages.
Other motion control products include: Limited angle torque motors for compact, limited angular excursion rotary servo applications, 3 phase brushless rotary servo motors with matching digital servo amplifiers and permanent magnet linear brakes for fail-safe, zero power braking for baggage handling and people moving applications as well as amusement park rides.
